GIGAWATT PC-2 EVO+ is a technologically advanced, new generation power conditioner, designed to power and protect audio-video systems of Hi-Fi and Hi-End class. This conditioner not only effectively protects against interference and overvoltage existing in the home power grid, but also guarantees a significant improvement of the quality of sound and displayed picture of the devices connected to it.

PC-2-EVO+_smallThe main differences to the PC-1 EVO:

• Six output sockets


• Three filter branches


• A buffer circuit


• Anti-vibration aluminum feet


• More rigid chassis

CONSTRUCTION

All internal elements of the conditioner were enclosed in a rigid, steel-aluminum chassis, supported on anti-vibration feet made from solid, anodized aluminum, with a layer of proprietary elastomer 3.5mm thick.

The front panel of the conditioner is made from a thick slab of aviation grade aluminum. Its surface is brushed, after precision milling, and then anodized black or silver.

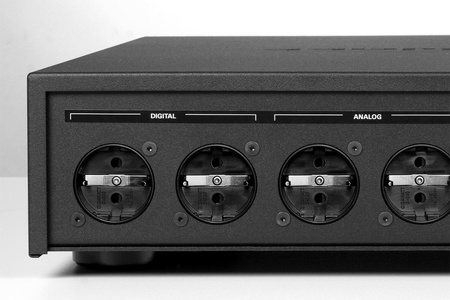

The PC-2 EVO+ has six, high quality proprietary GigaWatt power sockets, with large surface contacts. The brass contacts of the sockets were subdued to the process of technical silver plating without usage of intermediate metals, like copper or nickel, which could introduce an unfavorable serial resistance and a voltage loss. The increased surface of the contacts and the thick layer of silver guarantee good contact with the plug pins. The sockets were additionally cryogenically modified and de-magnetized.

Proper operation of the unit is indicated with a blue LED mounted in a display in the middle of the fascia. The conditioner is also equipped with an additional circuit signaling wrong connection to the power grid. Its action is indicated by a red LED on the back of the unit, which signals wrong polarity of the device or faulty grounding.

PC-2-EVO-backTECHNICAL SOLUTIONS

The conditioner PC-2 EVO+ is equipped with multistage parallel filters. Three, independent filtering branches, which supply three sections, composed of two output sockets each. Due to this solution the kind of filtering was adjusted for the load it has, different for each type of devices – digital, analog or high current devices. Autonomous passive filters allow for isolation from interference produced by the devices connected together via a shared power line.

The PC-2 EVO+ is based on a novel filtering architecture and uses new components. The main novelty are the anti-interference capacitors and the compensation batteries for the buffering circuits, which are manufactured by the company Miflex, according to GigaWatt specification.

In the PC-2 EVO+ an innovative, two-stage current distribution system is used, a proprietary design of our company. It is based on massive third generation distribution rails, made from polished slabs of oxygen-free copper OFHCC 10100 with 99.995% purity. The first stage allows for lossless and even distribution of voltage to each of the filtering branches. The second stage provides current directly to each pair of output sockets via bolted and clamped connections as well as cabling with conductors with 2.5QMM cross-section made from oxygen-free copper. The star connection topology and high conductance combined with the 30 QMM cross-section of each of the rails allow for an uniform and stable power distribution regardless of the load on the individual outputs of the conditioner.

Due to the improved efficiency of the filtering circuits, they were mounted using silver solder on massive PCBs having twice the amount of copper compared to standard PCBs. The single layer PCBs have very wide traces made from silver plated copper, with a thickness of 70 micrometers. The interference is damped by filtering blocs of RLC type, built around proprietary Audio Grade capacitors and IP (Iron Powder) core filters.

In the conditioner there are no traditional protective elements, like thermal or blow fuses, which throttled the free flow of the current have a negative influence on the sound. The surge protection of the conditioner is provided by the starting block, which utilizes plasma spark-gaps, UltraMOV new generation varistors and an initial filter. All those elements working together with a well-made, contemporary power grid, guarantee a complex protection against surges and overcurrent.

To allow for the maximum impulse response, the PC-2 EVO+ is equipped with a double buffer circuit with Audio Grade compensation batteries, a proprietary design. The circuit increases the current output with non-linear loads, like power amplifiers, as well as eliminates the difference of power between the input and output of the conditioner. This allows for almost unlimited impulse capabilities, unheard of in other passive conditioners and not reachable for active conditioners. The impulse capabilities of the PC-2 EVO+ surpass even the values of clean power line without any devices connected to it.

OPTIONAL EQUIPMENT

DC Offset Blocker – the conditioner can be equipped with a circuit eliminating unwanted DC component of the power grid. This DC component is a very deteriorating phenomenon, which exists in almost all power grids. It results in the sinus wave of the alternating current become non-symmetrical (non-sinusoidal) and has negative impact on all devices using transformers. It causes their cores to become magnetized, what increases their noise, diminishes the efficiency of power supplies and lower sound quality as a result of those. The DC blocker allows to eliminate this phenomenon effectively, without causing any compression or any other negative influence on the sound Rolling-Ball Isolation System feet – The PC-2 EVO+ can be equipped with a new kind of feet with a mechanism called Rolling-Ball Isolation System. This is an anti-vibration system comprised of two parts (external and internal) made from solid aluminum, with two runs with balls between them. The setup is to minimize the points of contact between the feet, and then the chassis of the conditioner and the rack, what in consequence translates into a significant reduction of mechanical vibration, which negatively impacts the internal elements of the conditioner, what in turn degrades its sound. Another isolation element, on which the whole construction is placed, is a proprietary elastomer, 5mm thick.

Power cables – higher models. The PC-2 EVO+ is equipped as standard with the power cord PowerSync Plus with 1.5m length. To maximize the potential of the conditioner we recommend the use of the power cord LC-2 EVO or LC-3 EVO

Basic technical data:

• Available socket types: EU (Schuko), US (Nema 5-20R), AU (AS/NZS 3112)


• Line voltage: 220-240 VAC 50/60 Hz or 110-120 VAC 50/60 Hz


• Maximum output power: 3 680 W


• Maximum current load: 16 A


• Absorbed impulse current: 20 000 A


• Dimensions (W xH xD): 440 x 115 x 400 mm


• Gross weight: 15,6 kg
