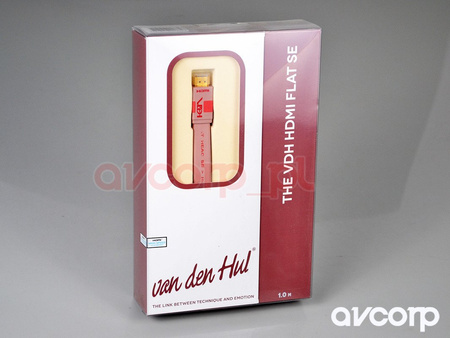

Van den Hul HDMI Flat SE

  • The HDMI Flat SE is a special edition of our HDMI Flat HEAC. We were able to reduce the cost considerably in reference to our “regular” HDMI Flat HEAC. No Redmere chip is needed and we can work with AWG 28 strands of tin plated high purity OFC.
  • Van den Hul HDMI Flat SE
  • Van den Hul HDMI Flat SE
  • Van den Hul HDMI Flat SE
Producer: Van den Hul
Product code: Van den Hul HDMI Flat SE
Warranty: 24 months
55,68 € - 80,17 €
/ pcs.

THE VDH HDMI FLAT SE (HALOGEN FREE)

Following the latest specifications introduced by the official HDMI organization we are proud to introduce The VDH HDMI Flat SE, a new high quality, flat shaped, HDMI cable that is fully compliant with the High Speed standard for lengths up to 3 meter.

The HDMI Flat SE is a special edition of our HDMI Flat HEAC. We were able to reduce the cost considerably in reference to our “regular” HDMI Flat HEAC. No Redmere chip is needed and we can work with AWG 28 strands of tin plated high purity Oxygen Free Copper. The downside is this only works up to 3,0 meter length. In case you need a longer length or when you prefer the AWG 26 silver plated strands of high purity Oxygen Free Copper, the VDH HDMI Flat HEAC should be your choice.


The VDH HDMI Flat SE features:

  • Fully compliant with the HDMI™ High Speed & Ethernet specification for lengths up to 3.0 meter.
  • Supports display resolutions up to 4096 x 2160; warranted for lengths up to 3,0m.
  • High-quality HDMI ‘Type A’ connectors with heavy gold plated contacts provide solid and reliable connections.
  • High-density-coated Oxygen Free Copper conductors warrant minimum signal attenuation.
  • In addition to the cable's Hulliflex ® jacket, the internal conductors' special coating adds extra protection against aggressive environmental conditions.



Environmentally friendly and durable:

The VDH HDMI Flat SE mauve colored jacket is made of our robust, halogen free, Hulliflex®.
Hulliflex ® provides long term stability of the cable’s mechanical and electrical properties. It is for instance chemically closed, protecting the leads inside from external influences. It is also environmentally friendly, both in production and during its use, as well as after many years of service: Even after disposal it can be burned in an incinerator without producing harmful gasses or toxic waste.

Flat shaped:
With the HDMI standard's enormous digital data throughput of up to 10.2 Gigabits per second, the cable's designed flat shape reduces crosstalk. The result is a higher signal integrity (especially at larger cable runs), which translates into superb digital video and sound quality. The flat shape also provides extra mechanical flexibility as well as extended options in architectural friendly installation, like running the cable through skirting.

Decades of service life for install use.

Available in a wide range of lengths: 1, 1.5, 2 and 3 meters.

Offering exceptional performance and value for money, The VDH HDMI Flat SE delivers clear sharp images, accurate color definition, vivid contrast and an infinity of fine detail up to the highest video resolutions. Sound at any digital format is matchless.



A summary of our HDMI cables performance:

Type



Length

High Speed

Ethernet



VDH HDMI Flat



1,0 - 15,0 meter

yes, up to 7,5 meter

no



VDH HDMI Flat 180



1,0 - 15,0 meter

yes, up to 5,0 meter

no



VDH HDMI Flat HEAC



1,0 - 15,0 meter

yes, up to 10,0 meter

yes



VDH HDMI Flat SE



1,0 - 3,0 meter

yes

yes



VDH HDMI Ultimate



1,0 - 25,0 meter

yes, up to 15,0 meter

no

Please note: The lengths mentioned above are the minimum distances up to which the given performances are warranted. However, in most situations larger distances can be accomplished.



SPECIFICATION:



THE VDH HDMI FLAT SE (HALOGEN FREE)
material Copper OFC
product category audio video - HDMI
product category video
product category network
cable type HDMI™ High Speed & Ethernet compliant
conductor material Tin-plated high purity OFC
design purpose HDMI™ standard digital AV interface with bi-directional Ethernet communication up to 10,2 Gbit/sec
eff conductor AWG-28
external diameter 14.6 mm. wide; 6.0 mm. thick
jacket colors Cream
insulation

Internal conductors: Cell PE; Jacket: HULLIFLEX ® / - /

connector types

As ready mounted: High-quality HDMI ‘Type A’ connectors with heavy gold plated contacts provide solid and reliable connections.

standard sales units

Single packed, fit with HDMI connectors, available in a wide range of lengths: 1, 1.5, 2 and 3 meters. The lengths mentioned are the minimum distances up to which the given performances are warranted.

remarks

HDMI™ High Speed & Ethernet compliant up to 3.0 meter
Handles 1080p resolution up to 3.0 meter. With the HDMI standard's enormous digital data throughput of up to 10.2 Gigabits per second, the cable's designed flat shape reduces crosstalk. The result is a higher signal integrity (especially at larger cable runs), which translates into superb digital video and sound quality.
The flat shape also provides extra mechanical flexibility as well as extended options in architectural friendly installation, like running the cable through skirting.



Tech specs:
Lenght:
1m
,
1,5m
,
3m
Conductor type:
OFC
Standard:
v 1.4
