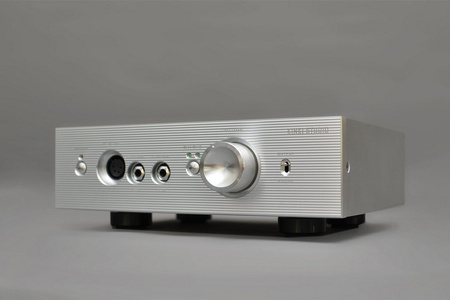

Kinki Studio VISION THR-1 - headphone amplifier (srebrny)
The VISION THR-1 headphone amp is designed to drive any headphone, literally. RMS output power rated at 2.2W 300Ω, 1.3W 600Ω. It comes with tripper headphone output jacks. Two Neutrik 6.3mm single ended jacks cater for low impedance and high impedance headphone, respective. One balanced Neutrik 4-Pin jack for the convenience to use with balanced headphone.
UK-Made AMPLIMO transformer, genuine premium parts sourced from legit distributors, i.e. RS-Component/Mouser/DigiKey/Farnel, can be found in the THR-1. Not only does the components guaranteed the longevity of the products, but also guaranteed the sound quality consistency in long run.
Need a preamp?
No problem. The THR-1 can be doubled up as Pre-amp by a toggle switch located right beside the volume pot. In Preamp mode, the headphone output is bypassed, the volume of the Preamp output can be controlled by the volume pot as a passive preamp.
Neutral sound reproduction, balance across all frequency with little or no coloration was the characteristic of THR-1. The oversize EXICON MOSFET Output Transistors provide strong control, micro-dynamic, micro-contrast and excellent drives. This is especially so even on the hard-to-drive AKG K1000, THR-1 handles the music reproduction with K1000 exceptionally well.
- Frequency Response: 20-300kHz (±1dB)
- THDN: 0.0014% (80dB)
- S/N Ratio: >98dB
- Dynamic Range: >115dB
Input / Output:
- Input Sensitivity: 2.25Vrms - 3.6Vrms
- Input Impedance: 50kΩ
- Input Connector: RCA x 1, XLR x 1
- Output Voltage: ±70VAC
- Output Connector: 6.3mm x 2, XLR 4Pin x 1
- Output Voltage: 2.25Vrms - 3.6Vrms
- Output Connector: XLR x 1
Dimension and weight:
- Dimension: 270W x 100H x 210D
- Weight: 6KG
